1. Proven ABS (absolute) sensor

Mitutoyo’s unique ABS (Absolute) sensor restores the last origin position automatically when the indicator is turned on. This allows quick-start operation, which is especially useful in multipoint measurement. Also, INC (Incremental) measurements can be made from any arbitrary position at the touch of a button, with restoration to ABS measurement mode being just as easy.

2. Rated to IP66 water- and dust proofing standard and oil resistance improved

This indicator can be used satisfactorily even in adverse environments where it is subject
to splashing by cutting fluid and coolant. Oil-resistant materials are used for external parts such as switches.

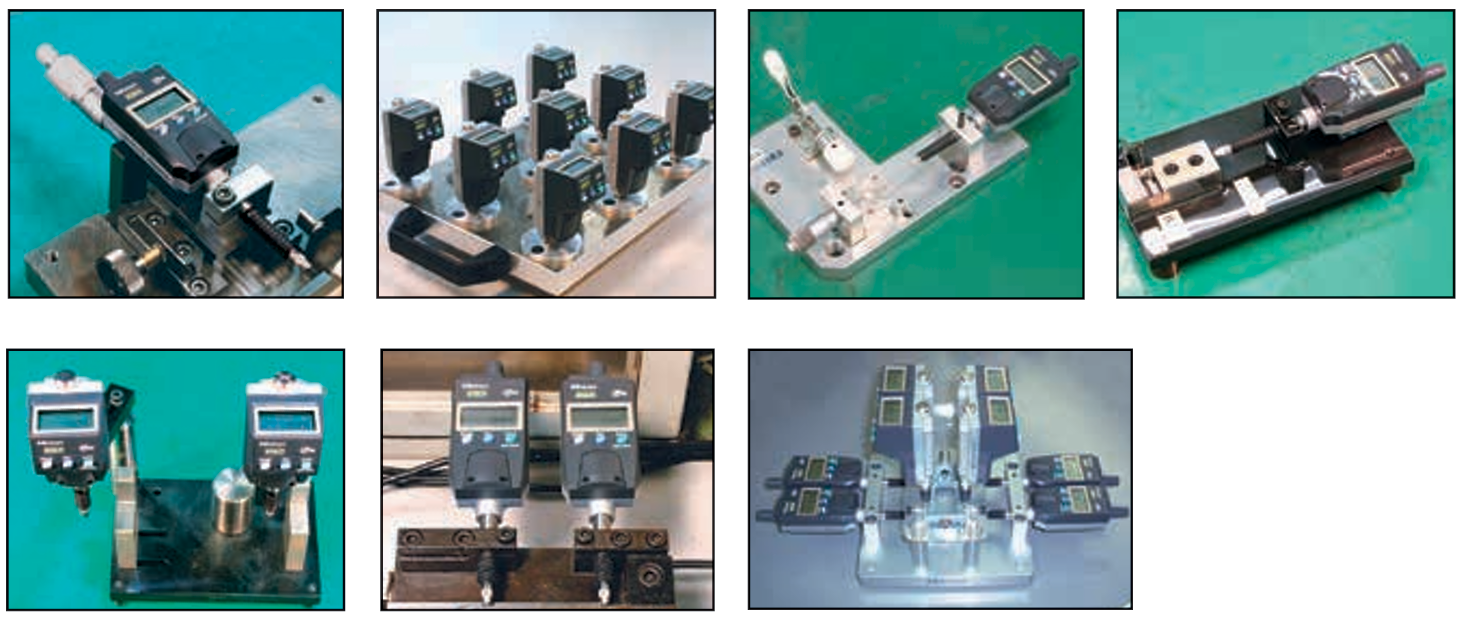

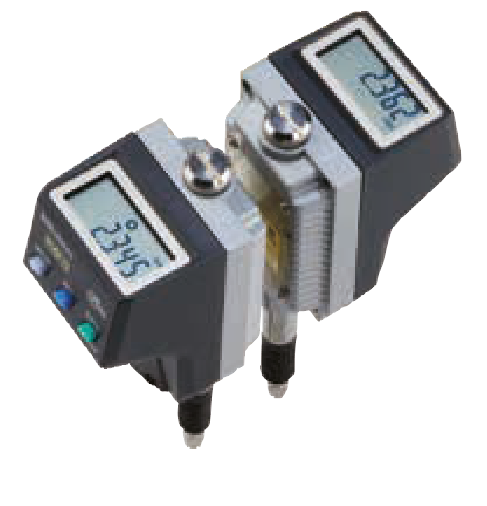

3. Slim body design is advantageous for multi point measurements

Slim design extends the application range to multipoint measurement and allows fixture downsizing.

4. Improvement in workability with the LCD readout rotation function

The LCD readout can be switched 180˚ to allow easy reading in multipoint measurement situations where space is restricted.

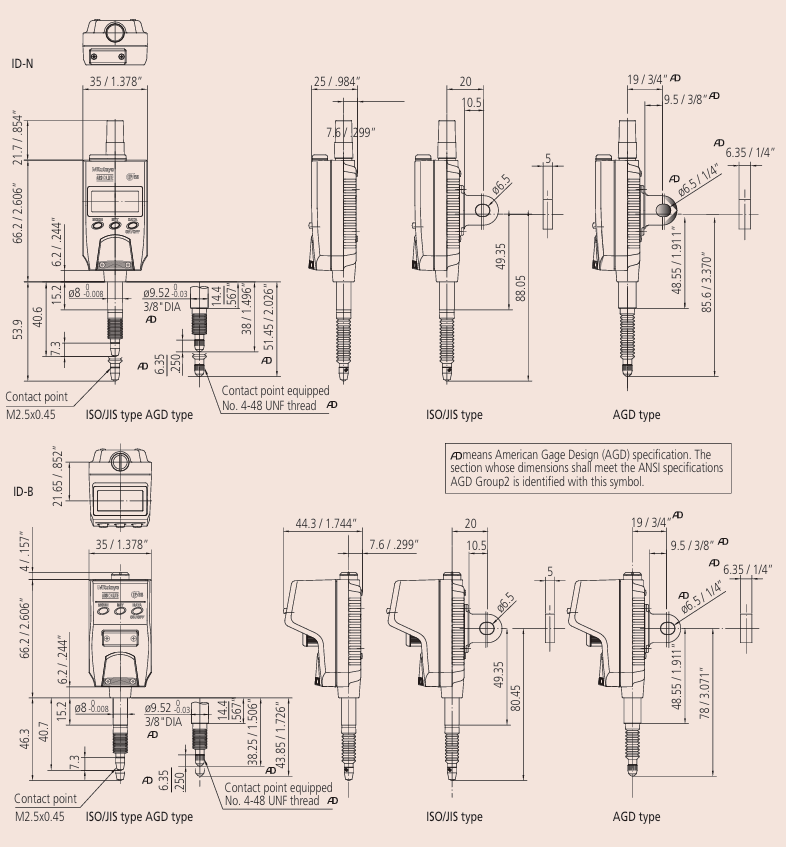

5. Back plunger design: ID-B

Mitutoyo has succeeded in digitalization of the back plunger type widely used for dial indicators. A 5mm-stroke plunger with a higher degree of accuracy has been implemented by adopting a direct reading scale for plunger displacement instead of the usual magnifying mechanism using gears.

6. Built-in tolerance judgment function

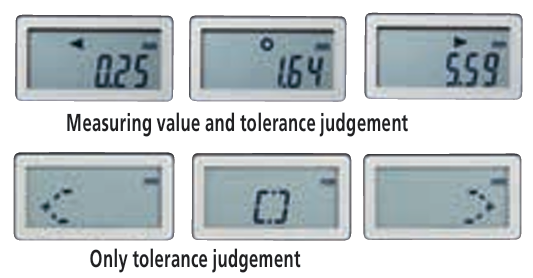

This function provides OK, +NG, or -NG judgment of measurement with respect to the preset upper and lower limit values, indicating the status of a measurement with the appropriate symbol. If required, only the OK/NG judgment can be displayed and in this case the symbols are much larger.

7. Switchable resolution

The 0.001mm (.00005”) model can be switched to 0.01mm (.0005”) resolution if required. Accuracy remains constant irrespective of the resolution setting.

8. Carbide contact points supplied as standard

Carbide contact points are standard on these indicators to provide outstanding durability. The full range of interchangeable Mitutoyo indicator contact points, spindle extension rods, etc., are also available to extend the range of application.

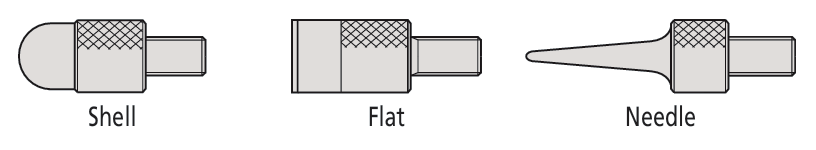

Optional contact points
